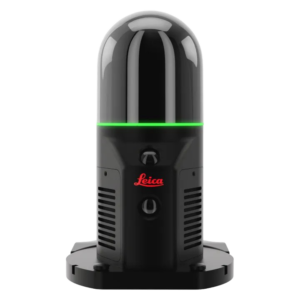

Leica BLK ARC Product Specifications
Design & Physical | |
| Housing | Black anodized aluminium |
| Dimensions | Height: 183.6 mm / Diameter: 80 mm |
| Weight | 690 g |
Operation | |
| BLK ARC-UI (Leica Geosystems) | Browser-based app; planning and dispatch of autonomous missions and manual control of BLK ARC & Spot. Requires additional installation on Spot CORE I/O. |
| Spot APP (Boston Dynamic) | Android app available for Spot users, BLK ARC control possible after installation of designed SW package on Spot CORE I/O |
| BLK Live App (Leica Geosystems) | Control BLK ARC data capture and preview data in real time. Android and iOS. |
| Leica Cyclone Field 360 | Controle BLK ARC data capture, preview and pre-register data. Android and iOS. |
| Communication | Wireless (app connection) |
| Internal memory |
24 hours (compressed) 6 hours (uncompressed) |
| Battery |
Battery sold separately |
LiDAR & Imaging | |
| Laser Class | 1 (in accordance with IEC 60825-1) |
| Wavelength | 830 nm |
| Field of View | 360° (horizontal) / 270° (vertical) |
| Range | Min. 0.5 - up to 25 m |
| Point measurement rate | 420,000 pts/sec |
| High resolution camera | 12 Mpixel, 90° x 120°, rolling shutter |
| Panoramic vision system | 3-camera system, 4.8 Mpixel 360° x 135°, global shutter |
System Performance (GrandSLAM Based) | |
| Range Noise | |
| Dynamic | +/- 3 mm |
| Static | +/- 2 mm |
| Accuracy indoor | +/- 10 mm |
Environmental | |
| Robustness | Designed for indoor and outdoor use |
| Operating temperature | 0 to +40 °C |
| Dust & humidity protection | IP54 (IEC 60529) |
Data Processing | |
| Data transfer | Wireless and USB 3.0 |
| Desktop software | Leica Cyclone REGISTER and Cyclone REGISTER 360 PLUS (BLK Edition) |
| Cloud software | Reality Cloud Studio, powered by HxDR |
All specifications are subject to change without notice.
All accuracy specifications are one sigma unless otherwise noted.
*at 78% albedo
**environment dependent
***controlled environment (scan duration 2 minutes)
